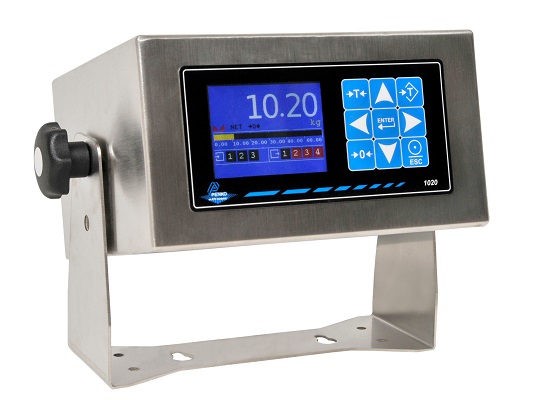

1020 with Belt Weighing software

- Weighing unit using passive sense, 1600 Samples per second
- 2,8” 320x240 Color LCD display
- Stainless Steel housing

DC power supply:
-18 - 32Vdc (24Vdc type) 4W max.

Inputs:
- 3 Inputs  Optical isolated, 1 common, 18 - 28 Vdc PNP or NPN
- Input 1 = Start/Stop or Tachometer
- Input 2 = Dynamic tarra
- Input 3 = Zero

Outputs:
- 4 Outputs Isolated PhotoMOS, 1 common, max. 35 Vdc or Vac, 0.5A nominal, 1A Surge PNP or NPN
- Output 1 = Alarm
- Output 2 = Busy/Done
- Output 3 = Flow OK
- Output 4 = Weight Pulse

Analog Output:
- Passive analog output, the analog output is used for Flow measurement or Flow regulation
0 - 20 mA
4 - 20 mA
0 - 24 mA
4 - 24 mA
0 - 10 V (with a 500 ohm resistor)


- For Certified or Industrial applications
- USB-port for easy calibrating via a PC
- Ethernet and Profibus communication

Communication can be used for:
Ethernet:
- Communicate with PC
- Communicate with PLC (Ethernet IP, Fins and Modbus TCP protocol)
- Communicate with other PENKO Flex devices with Ethernet (PENKO TP protocol)
- Printing

Profibus (slave):
- Communicate with PLC
- Communicate with other Profibus devices which are set as Master
